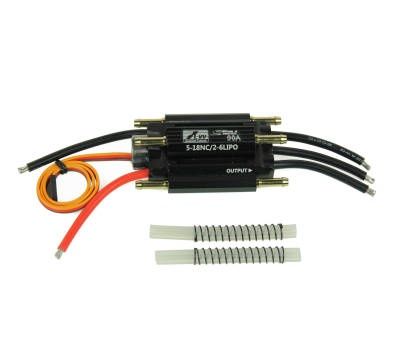

Seal 90A SBEC ESC (2-6 Cells)

Key Features

Extremely low internal resistance

Highly efficient three pipe water cooling system

Super smooth and accurate throttle linearity

Over temperature protection

Auto throttle shut down in signal loss situation

Supports high RPM motors

Power arming protection (prevents the motor from accidentally running when switched ON)

New advanced programming software

Product Description

Beautifully designed and manufactured, the new SEAL marine range of water-cooled brushless speed controllers by ZTW use new FETs that offer less resistance and less heat dissipation. ZTW has added additional water-pipes to increase the cooling area and so dissipate heat faster and with greater efficiency. The result enables higher power levels without fear of burning out the controller. Add to this a well-designed MCU with efficient code that makes for a faster sync and accurate control, and within this competitively priced package is a recipe for performance, reliability, and longevity.

Specification:

Size (W x L x H): 66 x 49 x 23.5mm

Weight (g): 120

Burst current (A): 110

BEC output: 5.5V / 3A

Battery: 5 - 18NiCd / 2 - 6 Li-Po
