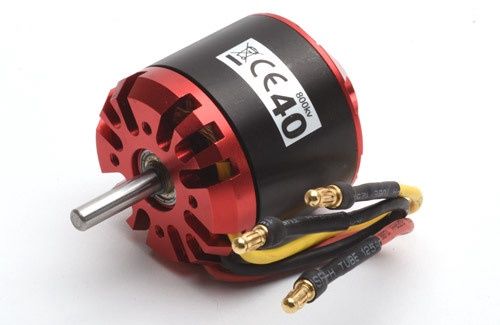

Ripmax Quantum II 40 Brushless Motor

The Ripmax Quantum II range of electric motors are designed to offer performance, efficiency, build quality and value-for-money in a wide array of sizes. Every motor includes a mounting kit comprising of a tough metal motor mount and a CNC metal prop adaptor that bolts to the can. For easy connection to the speed controller the motor comes pre-wired and the corresponding gold connectors are supplied for the ESC.

This .40 size speed motor is designed as an equivalent to a .40 2-stroke glow IC motor and is suited to a wide variety of spotts and scale models

.40 2-Stroke Equivalent Setup:

• 4S 4500mAh Li-Po

• 60A Brushless ESC

• 12x9W" Propeller

Specification

Connectors: 4mm Bullet

Length: 50mm

Weight: 210g

Diameter: 42.5mm

KV RPM: 800

LiPo: 3 - 7 Cells

Speed Controller: 60A Brushless (Req'd)

Power Output: 980W Max

Shaft dia: 5mm
