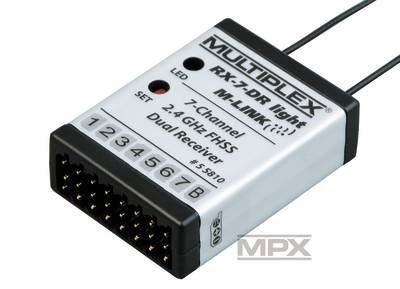

Receiver RX-7-Dr Light M-LINK 2.4GHz 55810

Product Description

This is a small, all-purpose seven-channel receiver exploiting MULTIPLEX 2.4 GHz M-LINK technology. It is a dual receiver, featuring two complete receiving circuits operating in parallel (receiver diversity), ensuring excellent reception quality in spite of the units small dimensions.

The RX-7-DR light M-LINK is a particularly good choice for the smaller model as it is so light and compact. The in-line connector arrangement and compact case design make it suitable for installation in slim glider fuselages, e.g. F3B, F3J, &hellip

¥ HOLD / FAIL-SAFE function

¥ Integral button and LED for Binding, FAIL-SAFE programming, RESET and operating status information Specification:

Servo channel count 7

Reception system 2.4 GHz FHSS

(Frequency Hopping Spread Spectrum)

Operating voltage 3.5 V &hellip 9.0 V

Power supply 4 - 5 NiXX cells, 2S LiPo / LiIo

Permissible operating temperature range - 20°C &hellip + 55°C

Dimensions (L x W x H) approx. 38 x 28 x 11,5 mm

Weight approx. 10 g
