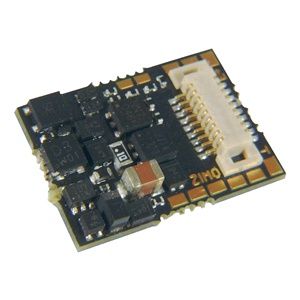

Next18 DCC Loco-Decoder (with Brake Button function)

A Next18 (NEM662) DCC Decoder suitable for models fitted with a Next18 DCC decoder socket.

This decoder replaces item Nos. 36-567 and 36-567A and can be used in any model for which item Nos. 36-567 or 36-567A are recommended.

Highlights include:
Multi-mode (NMRA-DCC format, Motorola protocol, DC Analogue and AC Analogue) with Back EMF function
4 powered function outputs (+2 logic level and 2 logic level/SUSI/Servo outputs)
0.7A continuous load
Suitable for models equipped with DC motors (including coreless motors)
Brake Button function for realistic control of braking (operates on F2)

Operating Modes:
Multi-mode (NMRA-DCC format, Motorola protocol, DC Analogue and AC Analogue) with Back EMF function
14, 28 and 128 speed steps
Short and Long addresses

Motor Control Features:
Suitable for models equipped with DC motors (including coreless motors)
0.7A continuous load
Variable pulse width frequency motor regulation (up to 40kHz)
Motor output overload protection; Back EMF (de-selectable)

Function Outputs:
4 powered-function outputs with overload protection.
500mA load per output
500mA total load of all function outputs
2 additional logic level outputs and 2 logic level/SUSI outputs
Shunting speed and momentum key selectable

Dimensions:
13.3mm x 9.5mm x 2.6mm

Default Address:
Address 3

Programming:
DCC Service Mode & DCC PoM (Programming on Main)

Additional Features:
RailCom® Feedback system
Upgradable firmware
