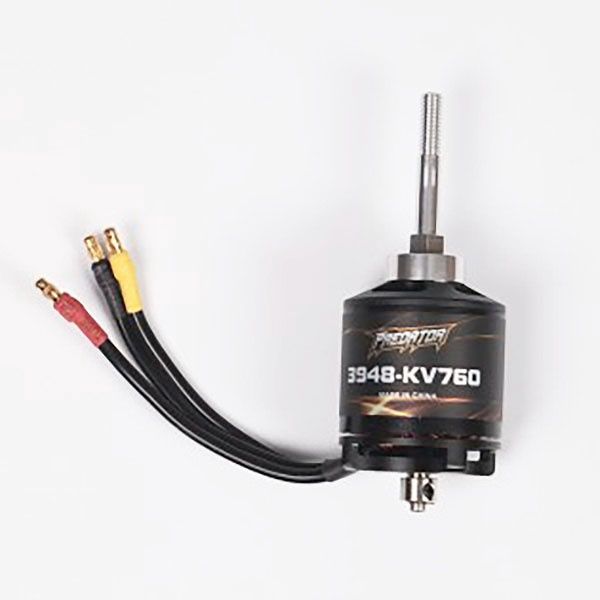

FMS PREDATOR 3948 KV760 MOTOR

Specifications

Manufacturer: FMS
Dimension (mm): Φ39*98
Weight (not including connectors): 210g Voltage (S): 4
Max Current (A): 2.2A
Length of Front Shaft (mm): 39
ESC: 40-60A
Lamination Thickness (mm): 25mm
Magnet Type: N45H
Kv (rpm/v): 760
Max Current (A): 50A
Resistance (mh): 0.029
Max Voltage (V): 18V
Power (W): 750W
Shaft A (mm):M6
Length B (mm): 51.1
Diameter C (mm): 39
Can Length D (mm): 29
Total Length E (mm):98
Items: 1300mm Yak 54/ Extra 300/ Sbach 342/ Edge 540
Reference Picture: No
