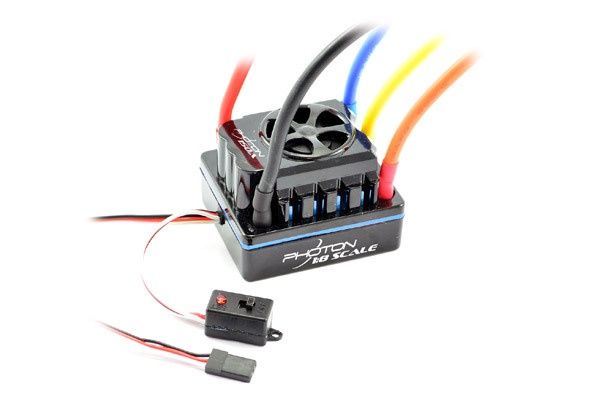

ETRONIX PHOTON 1/8 150AMP FULL WATERPROOF BRUSHLESS ESC

ETRONIX PHOTON 1/8 150AMP FULL WATERPROOF BRUSHLESS ESC

Two systems are available in the range 120A more suited to RTR applications and a 150A for higher end buggy/truck competitive demands. Also features a seperate sensor cable port for use with sensored aftermarket motors.

With the additional programmable set up card (ET0107) the user can finely tune ten different parameters within the ESC to suit their particular needs. (available separately)

150A Specification :-

4 Pole sensorless or sensored brushless motor

2-6S Lipo Support

5-18S NiMH/NiCd

3A 6V/8.4V Adjustable BEC output

150A Constant current

180A Burst Current

Dimensions : 55x48x37mm (without fan)

Weight : 159g
