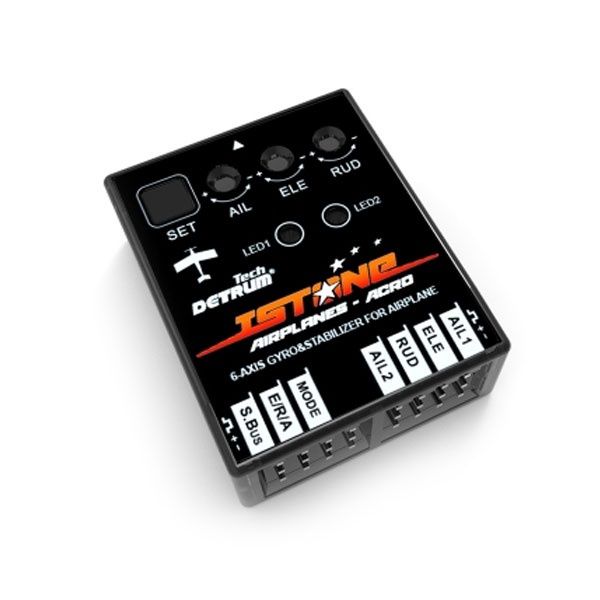

DETRUM ISTONE ACRO 6-AXIS AIRCRAFT STABILIZER

ISTONE-A ACRO is a 6-axis Gyro & Stabilizer for airplane, suitable for normal wing, fly-wing, and V-tail airplanes. It is used to connect with the receiver to control the flight, supports Gyro Off, Normal, and Aerobatic modes, compatible with S.BUS and PWM receivers. You can set the programmable items via SET button and LEDs.



DETRUM IStone Acro Features:



32-bit high-performance ARM MCU, 6-axis sensor chipset

Original attitude stabilization algorithm and control algorithm

Support normal wing, fly wing, and V-tail airplanes

Support mode switch via MODE channel, can switch between different modes

Three flight modes: Gyro Off Mode, Normal Mode, and Aerobatic Mode

Program via SET button and LEDs, adjust the gain for aileron, elevator, and rudder via three potentiometers

Support S.BUS and PWM receivers

Mini dimension, supporting different mounting directions (face up, down, left, and right)

Spec Check:



Main Controller: 32-bit MCU

Sensor: 6-axis gyro

Gyro Scale Range: -2000dps ~ +2000dps

Accelerometer Scale Range: -4g ~ +4g

Input Signal: PWM, S.BUS

Output Signal: PWM (71.4Hz)

Input Voltage: 4.8V ~ 7.4V

Operating Temp: -20? ~ 70?

Size: 36.5mm*29.4mm*12.4mm

Weight: 11g

What's Included:



ISTONE-A ACRO Gyro & Stabilizer ×1

3-signal wire ×1

Anti-shock double sided tape ×2

Single-signal wire ×1
