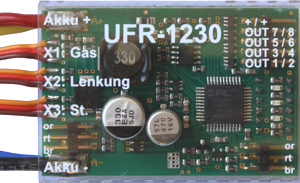

Beier UFR-1230 Speed controller 30A

Beier Speed controller 30A

The speed controller has been designed especially for RC vehicles with brushed DC motors.

The realistic and sensitive road performance ensures a lot of driving fun.

With various setting options the speed controller can be easily adjusted to all model requirements and driving behaviours. All settings can be set with DIP switches and the software "Drive-Teacher".

The speed controller is equipped with 8 switching outputs to connect LEDs and other lights. In addition the module has an extra output for connecting the infrared light module SM-IR-16-2 directly to the speed controller.

All light and additional functions can be controlled with nautic and multiswitch modules.

The speed controller UFR-1230 has following characteristics:

Supply voltage 6 - 18 V

Maximum motor current 30 A (short-term 60 A)

PWM pulse frequency 20 or 40 kHz

8 switching outputs for lights (for instance for braking, driving backwards, parking, flashing)

Powerful BEC with 5,6 V and 3 A continous current (short circuit proof)

3 proportional channels (throttle, steering, and control channel)

2 Proportionalausgänge (output for sound module and steering servo)

Additional functions controllable with nautic and multiswitch modules

Failsafe in case of receiver signal disturbances (motor stop)

Protection when switching on supply voltage

Output for infrared diode for light module SM-IR-16-2 in trailer

Battery voltage monitoring

Temperatur monitoring

Short circuit protection at motor output stage

Options adjustable with DIP schwitches:

Load regulation on / off

Cruise control on / off

Brake function on / off

Parking brake on / off

Choice of battery type: LiPo / other

Teaching function (setup) for throttle channel on / off

Additional functions are adjustable with the Windows-software "Drive-Teacher" and the data cable K-USB-2 (optional available):

Firmware update

Diagnosis

Invertion of channels

Deactivation of low voltage monitoring

Reduction of driving backwards speed by 50 %

Selection of PWM pulse frequency between 20 or 40 kHz (for bell-armature motors)

Adjustment of load regulation

Activation / adjustment of inertia

Activation / adjustment of steering inetria

Adjustment of hand brake sensitivity

Adjustment of throttle curve

Configuration of switching outputs (output types, brightness, Xenon effects, etc.)

Configuration of light switch (controllable with prop. channel)

Configuration of control channel

Configuration of nautic / multiswitch modules

Configuration of servo outputs of light module SM-IR-16-2

The speed controller is delivered ready for operation with a standard configuration (see screenshot in operating manual). The data cable is only required in case settings in the Drive-Teacher need to be changed.
