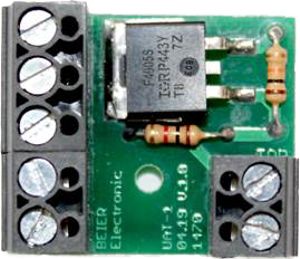

Beier UAT-1 Universal load driver

Beier Universal load driver

With the universal output driver UAT-1, loads with a high current consumption (such as motors, lamps, pumps, smoke generators, etc.) can be switched (up to 4 A).

The UAT-1 can be used if the current of an existing switching output is not sufficient for the connected load.

The universal output driver UAT-1 is usually controlled by the negative-switching outputs of follwing BEIER-modules:

Sound speed controller SFR-1, SFR-1-D and SFR-1-HL

Sound module USM-RC-2 and USM-HL-2

Speed controller UFR-1230 and UFR-1230-D

Multiswitchmodule

The advantage over other switching modules is that with UAT-1 even changing intensities (0 - 100%) can be switched with a high current. Thus, for example, stronger smoke generators or pumps can be connected to the switching outputs of our sound modules and speed controllers and still be regulated in the intensity.
