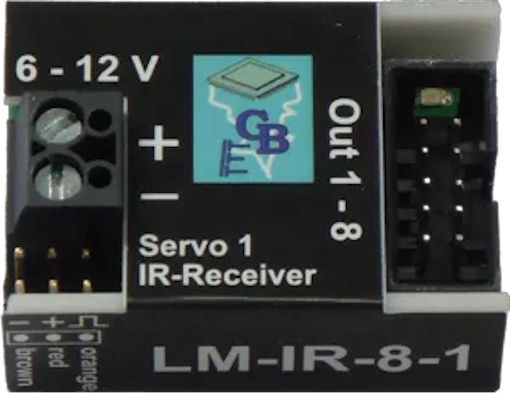

Beier LM-IR-8-1 Mini IR Trailer Module

Beier LM-IR-8-1 Mini IR Trailer Module<

p>The infrared light module LM-IR-8-1 is an expansion module for the following modules:

Sound speed controller SFR-1
Sound module USM-RC-2
Sound module USM-RC-3
Mini soundmodul MSM-1
Speed controller UFR-1230

The light module can be used to control lights and a servo output on a (truck) trailer and semi-trailer. The signals are transmitted wirelessly via infrared.

Light control:

The LM-IR-8-1 has 8 switching outputs for connecting lighting (e.g. lamps and LEDs). The light signals (outputs 1 – 8) are passed on 1:1 from the main module to the light module.

Servo control:

There is 1 servo output on the light module, which can be used to control various movements. Applications for this are e.g. trailer supports, the locking and unlocking of a fifth wheel, steerable axles or tilting movements. To control a motor, a speed controller can also be connected to the servo output.

In order to control the LM-IR-8-1, the light module may need to be selected or activated in the main module settings. For the USM-RC-2, USM-RC-3 and SFR-1 modules you can choose between two different IR protocols (slow and fast). The LM-IR-8-1 understands both protocols. With the MSM-1 and UFR-1230 there is only 1 protocol and this is automatically activated.

Technical data:

Supply voltage (Ub):   6 – 12 V DC
Power consumption: Â Â Standby current: approx. 15 mA
Switching outputs: Â Â 16 pieces, minus switching, the hight of the output voltage corresponds to the supply voltage.
Continuous current: 1,5 A,
Total current of all outputs max.: 3 A
Light functions:   1:1 copy of outputs 1 – 8 of the main module
Servo output: Â Â 4 piece
max. power consumption of servo: 1 A,
short time 4 A
Permissible ambient temperature:   0 – 60° C
Permissible relative air humidity: Â Â Max. 85 %
Size: Â Â 39 x 28 x 17 mm
Weight: Â Â 12 g
