Beier AKL-10-W Terminal block (With resistors)

Beier Terminal block for USM-RC-2 and EXM-2 (With resistors)

The AKL-10-W allows a comfortable wiring of the switching outputs for these modules:

Sound module USM-RC-2

Extension module EXM-2

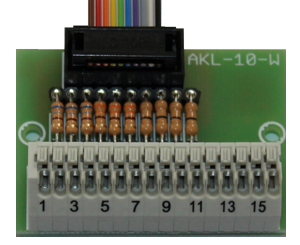

As a special feature on the AKL-10-W terminal are 10 sockets for plugable resistors to facilitate the connection of LEDs.

At the spring-loaded terminal the outputs 1-10 are available for an easy connection of consumers.

The outputs 11 to 16 are interconnected for an easy distribution of the plus pole.

The terminal can be connected directly to the sound and extension module with a pluggable ribbon cable.

The plus pole must be connected separately to each consumer, using clamp terminals 11 to 16.

Included with the AKL-10-W are each 10 resistors with values of 0 ohms (only 1 black ring), 150 ohms (brown, green, brown, gold) 330 Ohm (orange, orange, brown, gold) and 680 Ohm (blue, gray, brown, gold).
