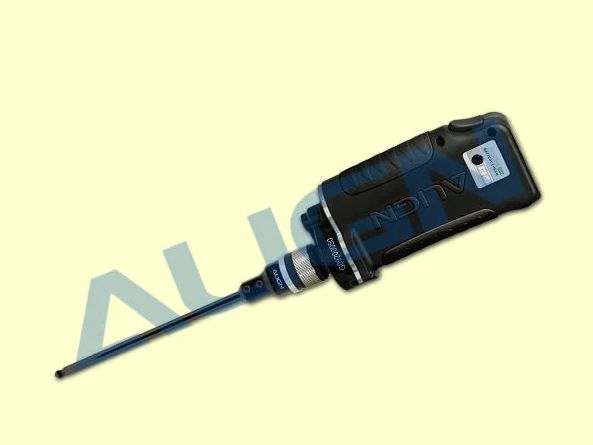

Align Super Starter(For Helicopter) Black

● Ergonomically designed for optimal hand grip to prevent slippage, light

weight, and easy to assemble/disassemble for transport ease. Suitable

for fixed wing airplanes or helicopters, engine can be started with a

simple one hand press on the button.

● Suitable for up to 50cc gasoline engine or 300 class nitro engine.

● Designed for user replaceable, common 450 heli sized

3S1P 1900~2300mAh/16c lipo batteries. Fully charged battery is

capable of 500 starts and beyond. Battery packs are charged with any

T-REX 450 battery chargers.

● Starting adaptor includes double one way bearing design.

● High efficiency motor providing high starting power, and low reacting

force.

● LED battery voltage indicator and over-discharge protection circuitry.

● Battery undervoltage protection.

● Overheating protection

● Protection against stalling by flooded torque overloading engine.

● Please note that for High Compression Petrol Engines, this starter may struggle, or not function correctly

●Suitable battery:Li-Po 3S1P 11.1V 1900~2300mAh 16C and above(maximum size 112x35x24mm)

●No load rotation speed:2300rpm

●Battery undervoltage:10.8V

●Quiescent current:0 mA

●Motor overheat protection:80°C

●Decelerate gear ratio:5.3:1

●Size:80x60x390mm

●Weight:700g (w/o battery)

●Starter body x 1

●Helicopter Starter Shaft x 1

Option: Battery:3S1P 11.1V 1900~2300mAh 16C Li-Poly battery
